1. LCD name: 3.2 inch 240*320, ST7789V, 8080 8/16 bit MCU interface TFT LCD module
2. Part No.: KD032QVTMA015
3. Other model Part No.
4. Compatible part No.:
5. Display type: TFT
6. Display colors: 65K/262K
7. Resolution (pixels): 240(RGB)*320
8. Pixel pitch: 0.2025 (H) x 0.2025 (V)
9. Viewing direction: 6:00
10. Controller IC: ST7789V
11. Display mode: Transmissive & Normally white
12. Overall size: 55.00*77.20*2.60mm
13. Viewing area:
14. Active Area: 48.60*64.80mm
15. Luminance: 450cd/m2
16. Contrast: 500
17. Interface type: 8/9/16/18 bit MCU 3/4SPI+16/18 bit RGB 3/4 line serial
18. Pin NO.: 45pins
19. Pin pitch: 0.3mm
20. Connecting type: FPC Socket
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight/white
23. Backlight: 6 LED in series
Vled =19.2V, Iled=15-20mA
24. Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80 °C
27. Certification of registration: ISO9001:2008
TS16949:2009 ISO 13485 :2003
28. Compliant: RoHS
1001- 5000 PCS

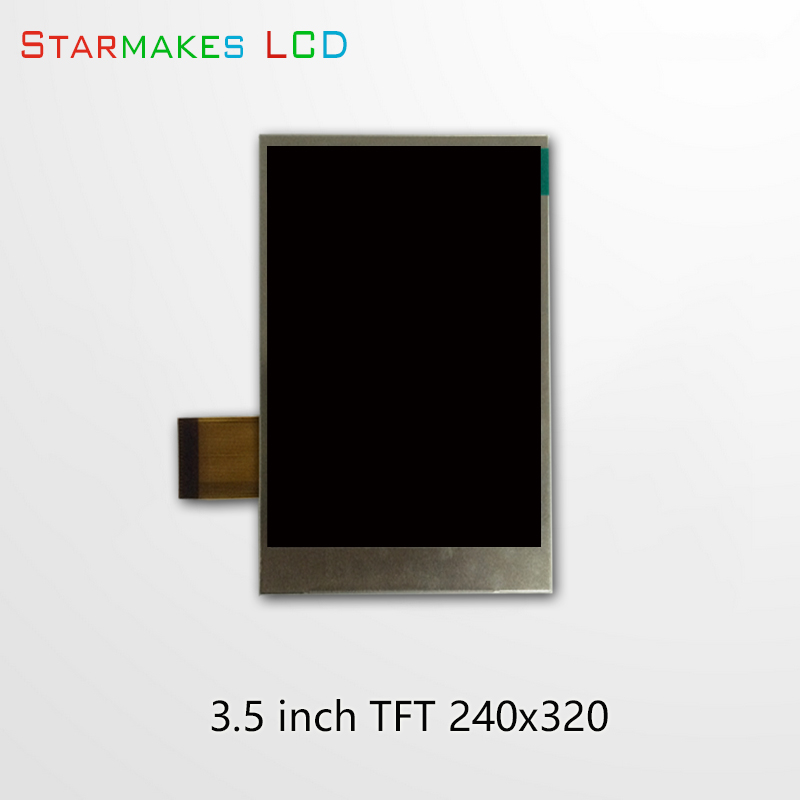

Pic 1: The photo of the working LCD

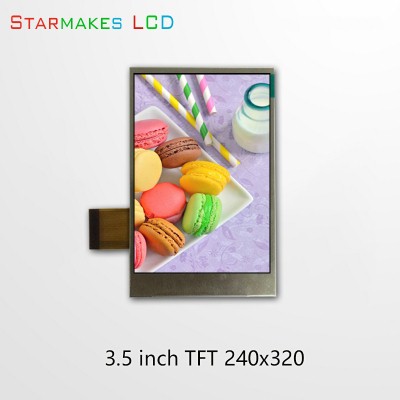

Pic 2: The photo of the front of LCD
Pic 3: The photo of the back of LCD
