SM022QVTBD004 Datasheet (Please contact our sales engineer to get the latest spec)
1. LCD name: 2.2 inch 240*320, ST7789V, 8 /9/16 bit MCU interface TFT LCD
2. Part No.: SM022QVTBD004
3. Compatible part No.: KD022C-2A
4. Size.: 2.2 inch
5. With touch panel or not: No
6. Display type: TFT
7. Display colors: 65K/262K
8. Resolution (pixels): 240(RGB)*320
9. Pixel pitch: 0.141(H)*0.141(V)
10. Viewing direction: 6:00
11. Controller IC: ST7789V
12. Display mode: Transmissive
13. Overall size: 41.70*56.16*2.6mm
14. Viewing area:
15. Active Area: 33.84*45.12mm
16. Luminance: 280cd/m2
17. Contrast: 350
18. Interface type: 8 /9/16 bit MCU
19. Pin NO.: 45pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 3 LED in parallel, common cathode
Vled =3.2V, Iled=60mA
25. LED Life span: 50000h
26. Operating temperature range: -20----70 °C
27. Storage Temperature range: -30----80 °C
28. Certification of registration: ISO9001:2008
TS16949:2009 ISO 13485 :2003
29. Compliant: RoHS
1001- 5000 PCS

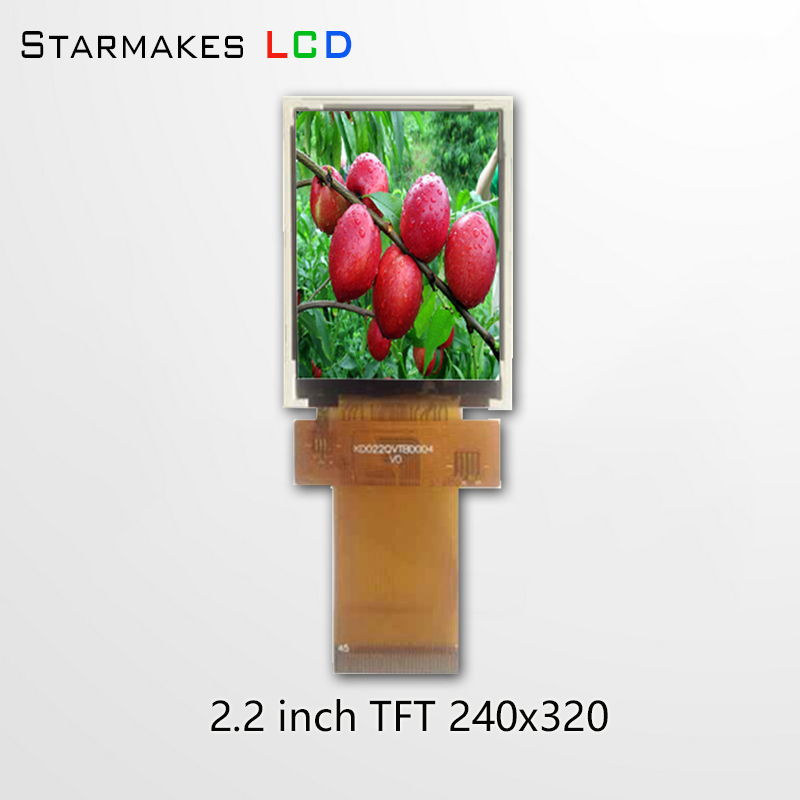

Pic 1: The photo of the working LCD

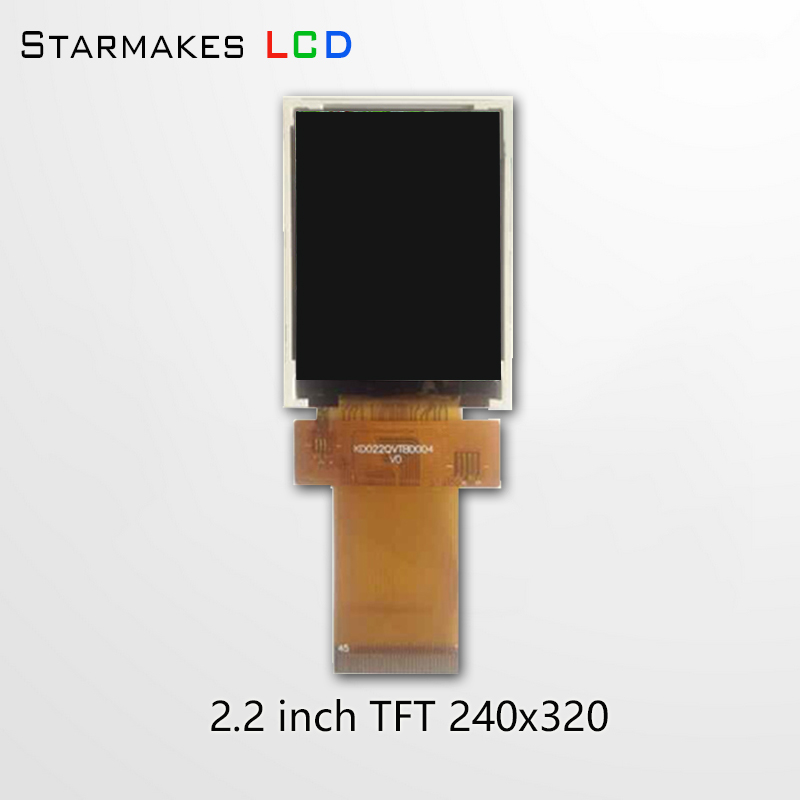

Pic 2: The photo of the front of LCD
Pic 3: The photo of the back of LCD
1. Where can I get the datasheet, initialization code and other technical files ?
Please contact with our sales by mail or chat on the Skype, we will send the datasheet within 24 hours
2. Is there a Touch Panel (Touch screen) on the display ?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.
Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.
Capacitive touch panel – Allows multi-touch operation as seen on a smart cell phones or tablets, and allow more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.
3. Is there a possibility to make a more brighter display?
Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high brightness backlight for you. And make it sunlight readable.
4. How to Understand Stock for Sale?
Stock levels are based on item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact with our sales for price, stock availability and lead time.
5. Never End of Supply, Our Long-term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. STARTEK gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply. Some controller IC may stop the production, we'll try our efforts to find the completely compatible ones. If the equivalent is unavailable, we'll make the new tooling and use the most similar IC as replacement. So you don't have to worry even your research time is very long.
6. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.
7. I am new for developing LCD modules.
Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get started.
